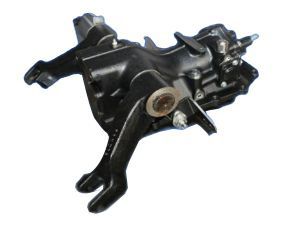

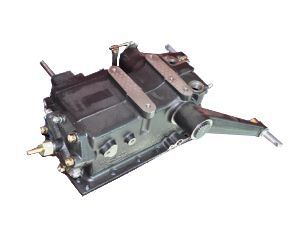

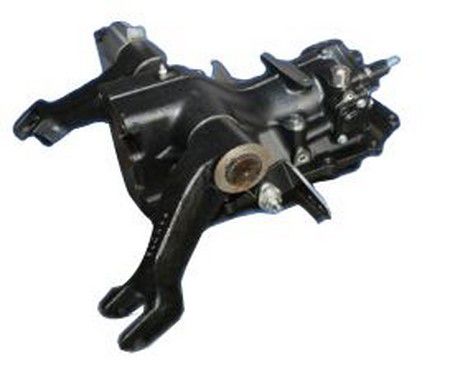

Hydraulic Lift in Tractor
Hydraulic lift in tractor is connected to the hydraulic lift arms through three-point linkage. It consists of a housing attached to the differential case, lifting arms, main shaft, crank arm, connecting rod, cylinder, piston and control valve.

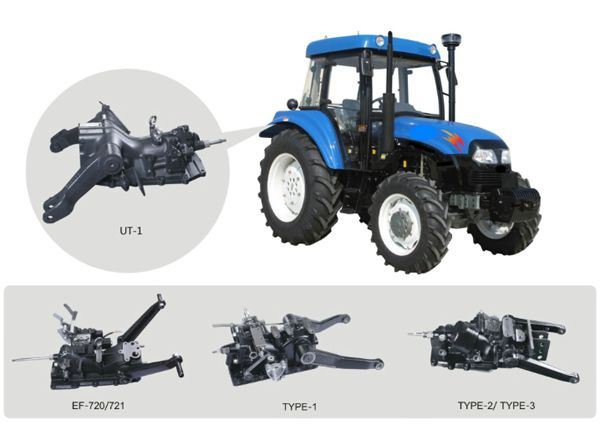

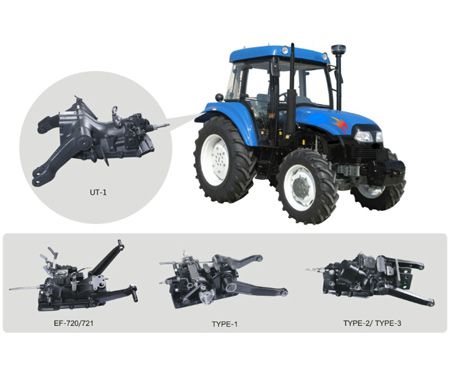

| Type | Horse Power | Lift Angle | Relief pressure | Working Flow | Lift Type |
| EF-720 | 25 | -5.5º~+60º | 15.2+0.5 MPa | 22 L/min | Rear 3 linkage |
| EF-721 | 25 | -5.5º~+60º | 15.2+0.5 MPa | 22 L/min | |
| TYPE-1 | 22-25 | -17º~+49º | 15.2+0.5 MPa | 24 L/min | |
| TYPE-2 | 28-36 | -16º~+47º | 15.2+0.5 MPa | 30 L/min | |
| TYPE-3 | 28-36 | -6.6º~+57º | 15.2+0.5 MPa | 19 L/min | |
| LC-001 | 30 | -9º~+57º | 20±0.5 MPa | 31 L/min | |
| LC-004 | 40-45 | -24º~+50º | 20±0.5 MPa | 31 L/min | |
| UT-1 | 75 | -32º~+45º | 15+0.5 MPa | 32 L/min |
If you are still struggling to find the right product, or have request for quotation, or any concerns about our products, our experts will be happy to assist you.
