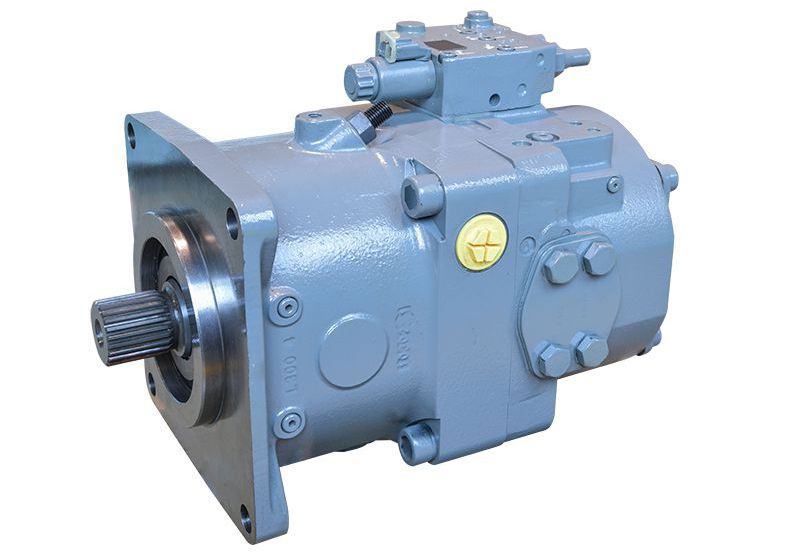

Axial Piston Variable Pump-open Circuit, K11V(L)O

K11V(L)O (Replacement for A11V(L)O Series 1x)Replacement hydraulic pump for A11V(L)O series 1x axial piston variable pump

  • All-purpose high pressure pump with through drive
  • Size 40 - 260
  • Nominal pressure 350 bar
  • Maximum pressure 400 bar
  • Open circuit
  • Swashplate design
Get in Touch PDF Download 3D Video Download
Features
  • Through drive for mounting of further pumps up to same nominal size
  • Optional with charge pump for the nominal sizes 130 to 260
  • Particularly high speeds are possible with impeller pump version A11VLO
  • Large variety of controls
Technical Parameters
Size 40 60 75 95 130 145 190 260 130 145 190 260
Version Standard With charge pump
Displacement Vg max cm³ 42 58.5 74 93.5 130 145 193 260 130 145 193 260
geometric,per revolution
Nominal pressure pnom bar 350 350 350 350 350 350 350 350 350 350 350 350
Max. pressure pmax bar 400 400 400 400 400 400 400 400 400 400 400 400
Max. speed at Vg max nnom rpm 3000 2700 2550 2350 2100 2200 2100 2000 2500 2500 2500 2300
Flow at Vg max and nnom qV nom l/min 126 158 189 220 273 319 405 468 325 363 483 598
Power at qVnom and pnom P kW 74 92 110 128 159 186 236 273 190 211 281 349
Torque at Vg max and pnom M Nm 234 326 412 521 724 808 1075 1448 724 808 1075 1448
Weight (approx.) m kg 32 40 45 53 66 76 95 125 72 73 104 138
Description

The K11V(L)O axial piston variable pump is designed for stationary applications and generates, controls, and regulates a hydraulic fluid flow. This variable displacement piston pump features a swashplate design for open circuit hydrostatic drives, providing proportional flow to drive speed and displacement. The flow can be continuously adjusted by controlling the swashplate. In an open circuit, hydraulic fluid flows from the tank to the variable pump, then to the consumer through a directional valve, and finally returns to the tank via the same valve.

Applications

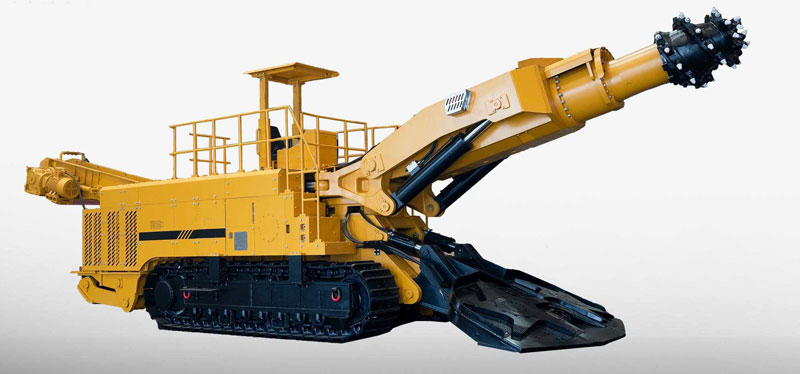

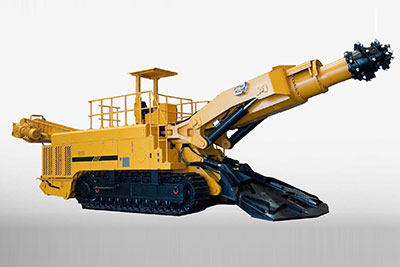

  • Rock Mining MachineRock Mining Machine

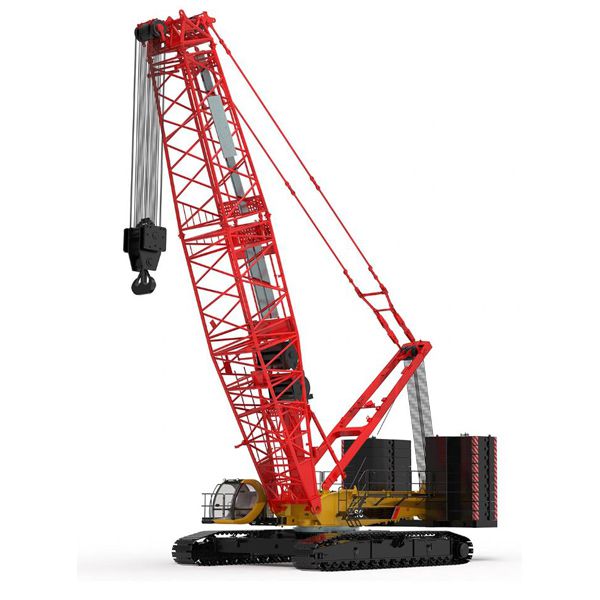

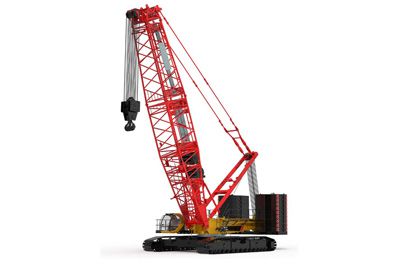

  • Crawler craneCrawler crane

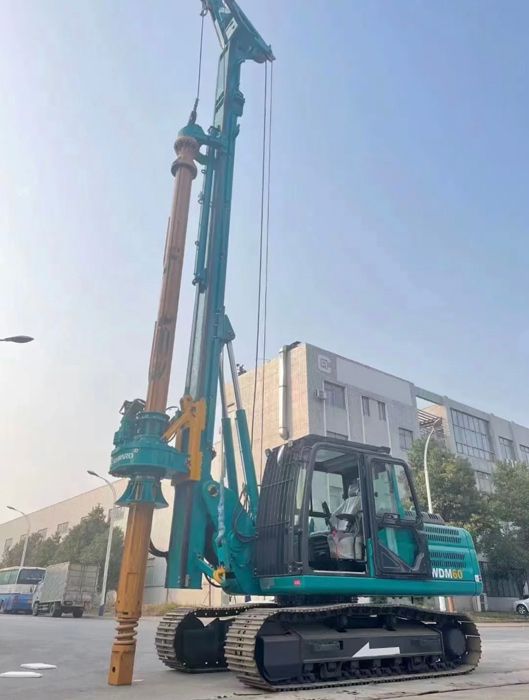

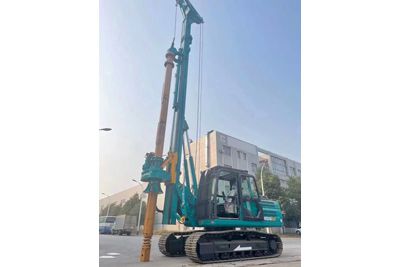

  • Rotary Drilling RigRotary Drilling Rig
Contact Us!

If you are still struggling to find the right product, or have request for quotation, or any concerns about our products, our experts will be happy to assist you.
